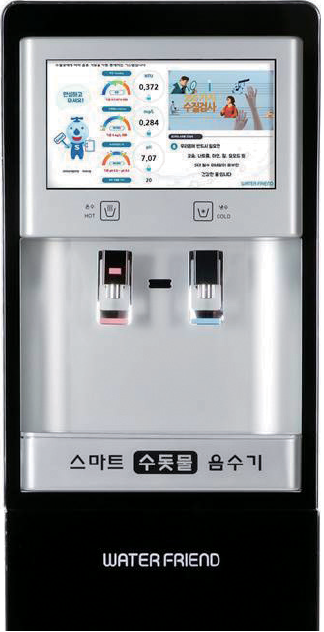

SMART WATER FOUNTAIN

SMART WATER FOUNTAIN SMART WATER FOUNTAINSmart Water Fountain Main/Sub
  • 혁신제품
  • 굿디자인
  • NSF

Smart Water Fountain informs the user of tap water information right before drinking in real time.
When unsuitable tap water is supplied, it is automatically judged and the supply of drinking water is stopped.

Product Features

  • Always Drink Safely Real time water quality measuring (Turbidity, Free Chlorine, pH, Electrical Conductivity, Water Temperature)
  • Fresh and Delicious Periodic drainage of drinking water from the water tank cola and hot water automatic supply system
  • Healty Water Provides mineral-rich tap water, Display of total dissolved solid measurement data, UV lamp ultraviolet sterilization
  • Publicity and Convenience Use of various drinking utensils such as cups and tumblers Depending on the user's approach, the display can be swiched to provide various information
  • Additional Function Energy saving with power saving function in consideration of usage time Provision of information to citizens by showing public campaign videos and advertisement
  • 선택적 기능 공공홍보물, 공익광고, 알림 등의 기능을 선택적으로
    활용 가능

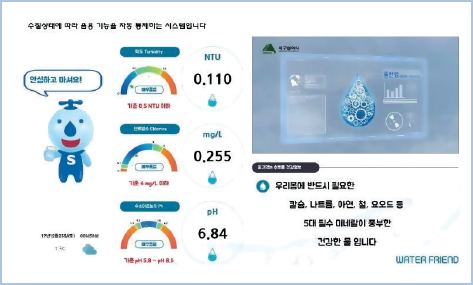

Display water quality information

(Close)Share and display real-time water quality information

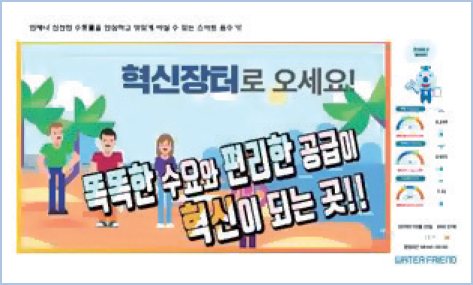

(Far Away Display)Public Ads, promotions

Product Specification

Product Specification
Specification
  • Size450 (W) x 1450(H) x 350(D)
  • Display14 inch
  • PowerAC220V, 60Hz
Control Unit
  • Display14 inch
  • TelecommunicationVertual Server (Window), LTE-M, Ethernet
Measure Unit
  • Structure
    • Main model : Multi-parameter Water Quality Analyzer Equipped
    • Sub model : Data sharing and operating same as main model
  • Measuring methodTurbidity, Free Chlorine, pH, Electric Conductivity, Water Temperature(Real time simultaneously)
  • FaucetCold/Hot
  • SupplyContinueosly 1L more
  • InstallationIndoor Using

Measure Range

Measure Range
Turbidity Free Chlorine pH Electric Conductivity Water Temperature
0 ~ 10NTU 0 ~ 2mg/L pH0 ~ pH14 0 ~ 500
5000㎲/cm
-20℃ ~ 70℃

Installation Case

  • goheung gun waterworks authority 2023.08.11
  • gunsan si city hall 2023.10.05
  • Yangsan si OO car showroom 2023.09.07
  • uiryeong gun local festival 2023.10.08
  • gimpo si city hall 2020.09.11
  • seoul si Cafe 2022.07.19
  • daegu si Daegu Science Center 2021.11.29
  • gyeongsangnam-do city hall 2020.07.23
