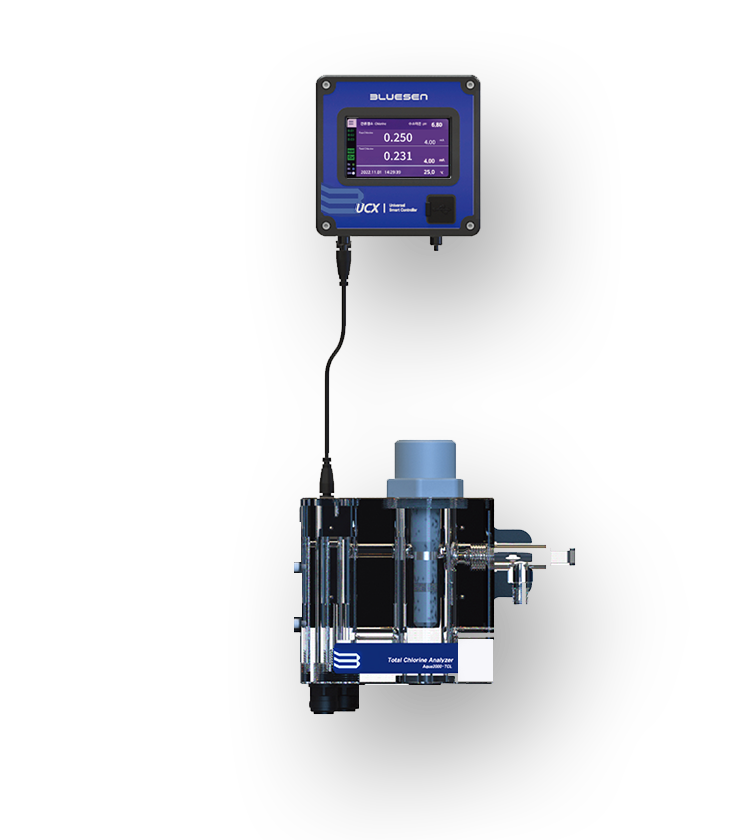

WATER QUALITY ANALYZER Total Chlorine AnalyzerAqua2000-TCL
  •
Catalogue Download Product List

Aqua2000-TCL is a reagent-free device that automatically and continuously measures total chlorine in real time. It features a long-life membrane-protected sensor with over two years of stable operation. The system is designed for easy maintenance, intuitive operation, and does not generate any waste liquid after measurement.

Product Specification

Product Specification
Instruction Calculation Part
  • Display4.3 Inch Touch TFT LCD Touch Panel
  • Size153(W) x 150(H) x 140(D) mm
  • WaterproofIP66
  • Power/Power ConsumtionAC100~240V, 50/60Hz, 4.2W
  • Output4~20mA
  • CommunicationRS232, RS485 (option)
  • DownloadUSB 2.0
Total Chlorine
  • Measurement MethodPolarograph Amperometric
  • ElectrodGold Cathode, Silver Anode(Anodizing)
  • Measurement range0~20mg/L
Water Temperature
  • Measurement rangePT1000Ω
  • Electrode materialPlatinum thermometer
  • Measurement range-20 ~ 70℃

Installation Case
