WATER QUALITY ANALYZER

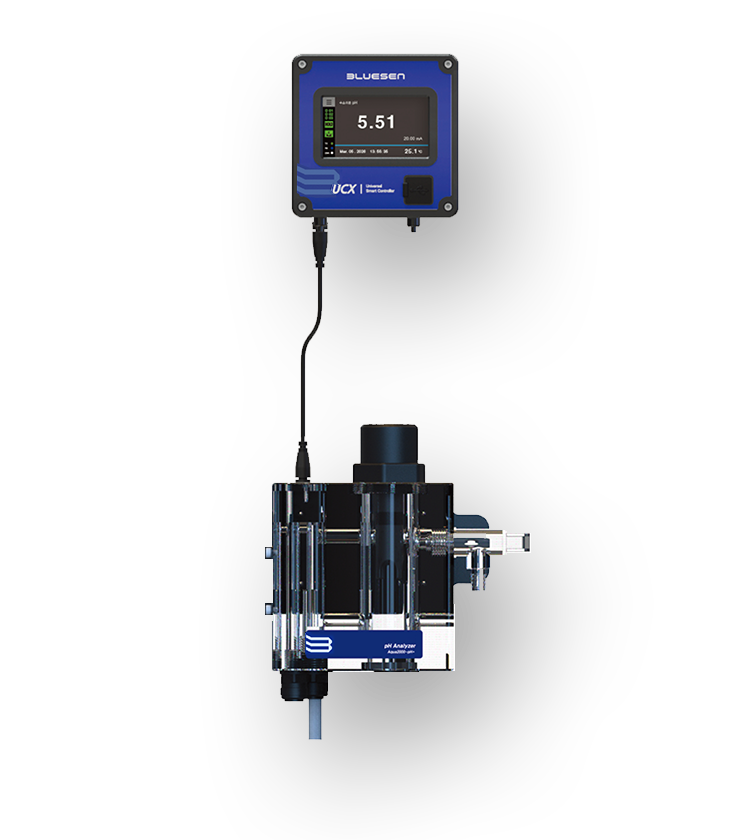

WATER QUALITY ANALYZER pH MeterAqua2000-pH
  • 조달청
Catalogue Download Product List

The hydrogen ion density meter Aqua2000-pH is a device that measures hydrogen ions and water temperature. As the condition of the measurement part can be inspected visually, the sensor's conditions and defects can be checked easily; management convenience has been improved.

Product Specification

Product Specification
Instruction Calculation Part
  • Display4.3 Inch Touch TFT LCD Touch Panel
  • Size153(W) x 150(H) x 140(D) mm
  • WaterproofIP65
  • Power/Power ConsumtionAC100/240V, 50/60Hz, 10W
  • Output4~20mA, 2CH
  • CommunicationRS232, RS485 (option)
  • DownloadUSB, SD card (option)
pH
  • Measurement MethodComposite glass electrode
  • Measuremtne typeTemperature auto compensation
  • Measurement rangepH0 ~ pH14
Water Temperature
  • Measurement rangePT1000Ω
  • Electrode materialPlatinum thermometer (built in water quality sensor)
  • Measurement range-20 ~ 70℃

Sensor Specitifation
