WATER QUALITY ANALYZER
Wastewater Water Quality Analyzer

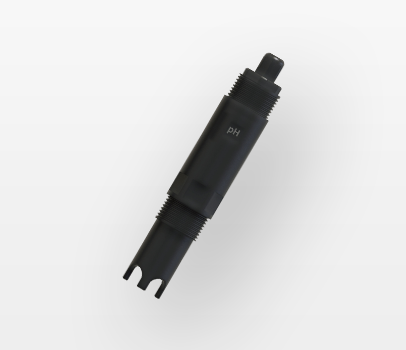

pH Sensor
Aqua2000-pH
- Measurement MethodComposite Glass Electrode Method
- CompensationAutomatic Temperature Compensation
- Measurement RangepH 0~14
- Accuracy±1%
- Ingress ProtectionIP68

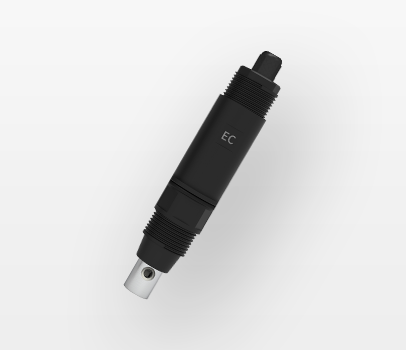

Electrical Conductivity Sensor
Aqua2000-EC
- Measurement MethodAC Two-Electrode Method
- CompensationAutomatic Temperature Compensation
- Measurement Range0~5000㎲/㎝
- Accuracy±1%
- Ingress ProtectionIP68

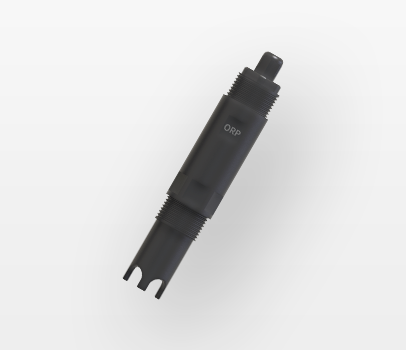

ORP Sensor
Aqua2000-ORP
- Measurement MethodElectrochemical Method
- Compensation-2000~+2000mV
- Measurement Range0~12
- Accuracy±0.1mV
- Ingress ProtectionIP68

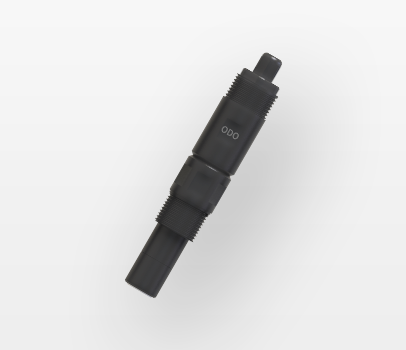

Dissolved Oxygen (DO) Sensor
Aqua2000-ODO
- Measurement MethodOptical Method
- Light SourceLED
- Measurement Range0~50mg/L, 0~500%
- Accuracy0~150%<±1%
150~300%<±3%
300~500%<±15% - Ingress ProtectionIP68

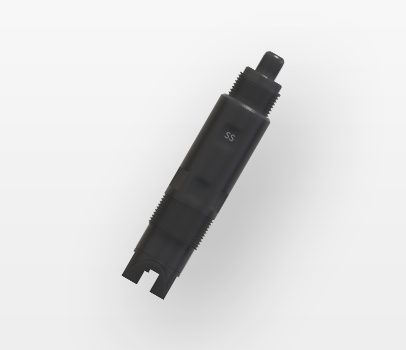

Suspended Solids (SS) Sensor
Aqua2000-SS
- Measurement Method90° × 180° Transmitted & Scattered Light Method (Chromaticity Compensation)
- Light SourceLED
- Measurement Range0~20,000mg/L
- Accuracy±1%
- Ingress ProtectionIP68

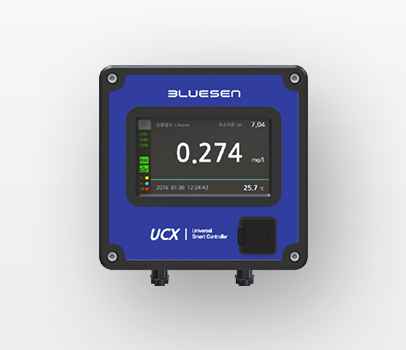

Controller
UCX
- Display4.3Inch Touch TFT LCD
- Size153(W) x 150(H) x 140(D)mm
- WaterproofIP65
- Power & ConsumptionAC100/240V, 50/60Hz, 10W
- Current Output4~20mA, 2CH
- CommunicationRS232 or RS485
- DownloadUSB, SD Card
