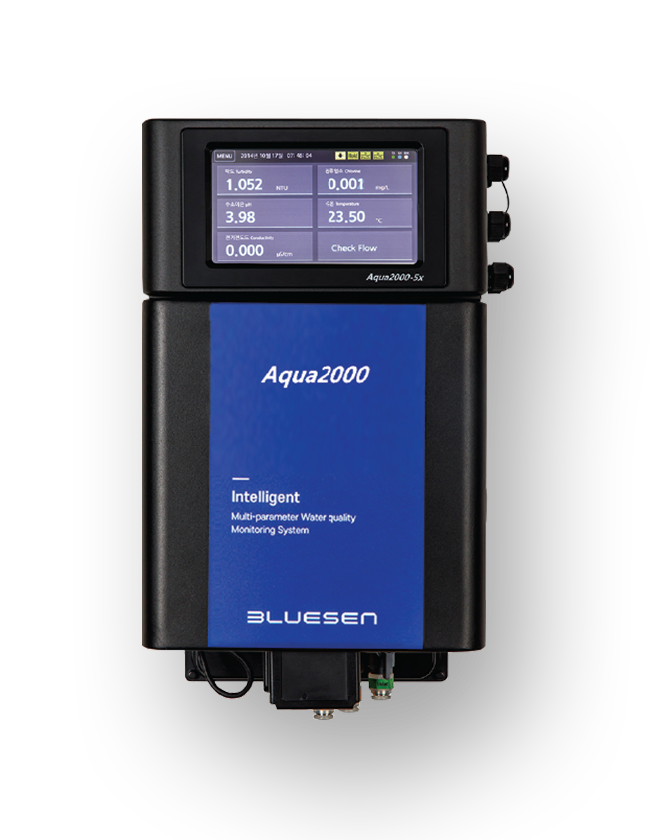

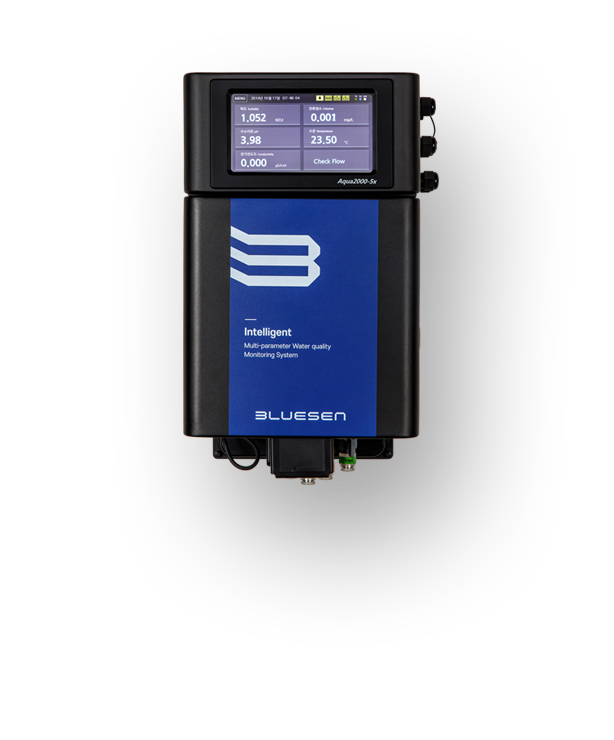

Aqua2000-5x is a device that automatically and continuously measures the water quality of tap water in real time and transmits data. It is an eco-friendly, high-precision water quality measuring instrument. optimal fluid engineering sample flow measurement structure makes it possible to provide accurate and stable water quality measurement data even in the change of various measurement environmental conditions that may occur at the installation and operation site.

Product Specification

Product Specification
Enclosure
  • Size260(W) x 400(H) x 225(D)mm
  • MaterialAluminum
  • WaterproofIP65
  • Operationg Temperature-20℃ ~ 70℃
Control Unit
  • CPU92 BIT MICRO PROCESS
  • Display7 inch Touch TFT LCD
  • Power/Power ConsumptionAC100/240V, 50/60Hz 34W
  • OutputAnalog output (4~20mA), : 6 points /
    Digital output (contact) : 4 points
  • CommunicationRS232, RS485, Ethernet (option) / Download : USB, SD card (option)
Multi-parameter Measure Unit
  • Inlet/Outlet diameter10Ø
  • Flux150 ~ 500mL/min

Sensor Specitifation

Sensor Specitifation
Free Chlorine
  • Measurement methodPolarograph amperometry method (regent free)
  • StructureElectrode protection by membrane cap
  • Measurement typepH and temperature auto compensation
  • Measurement range0~2/10mg/L (range can be set)
  • Reproducibility±1%
Turbidity
  • Measurement method90° scattering light method
  • Light sourceTungsten Lamp
  • Measurement range 0~2/10/200 NTU (avaliable to set the range)
  • Reproducibility±1%
pH
  • Measurement methodComposite glass electrode
  • Measurement typeTemperature auto compension
  • Measurement rangepH 0~14
  • Reproducibility±1%
Electrical Conductivity
  • Measurement methodAC 2 polar method
  • Electrode materialTitanium
  • Measurement typeTemperature auto compension
  • Measurement range0~5000μS/cm (avaliable to set the range)
  • Reproducibility±1%
Water Temperature
  • Measurement methodPT1000Ω
  • Electrode materialPlatinum thermometer
  • Measurement range-20 ~ 70℃
  • Accuracy±0.2℃

Installation Case

  • Reservoir hamyang gun 2023.11.02
  • reservoir Hoengseong-gun 2022.11.25
  • swimming pool inje gun 2022.11.18
  • Reservoir Jinju-si 2023.02.20
  • Reservoir Hongseong-gun 2023.02.20
  • ApartmentApartment Water Quality Monitoring Naju-si 2023.02.20
  • ApartmentApartment Water Quality Monitoring Naju-si 2023.02.20
  • Apartment Water Quality Monitoring Sa cheon-si 2023.02.20
  • ApartmentApartment Water Quality Monitoring Paju-si 2023.02.20
  • Apartment Paju-si 2023.02.20
  • Apartment Hwa seong-si 2023.02.20
  • Apartment Water Quality Monitoring Hwa seong-si 2023.02.20
  • purification plant Pohang-si 2023.02.20
  • purification plant Cheon an-si 2023.02.20
  • purification plant Jeju-si 2023.02.20
  • purification plant Jung sun-gun 2023.02.20
  • purification plant Cheon an-si 2023.02.20
  • Block drain network Busan-si 2023.02.20
  • Block drain network Seoul-si 2018.05.29
  • Block drain network Seoul-si 2023.02.20
  • Block drain network Hwa seong-si 2018.03.29
